Wedge Wire Filter Elements

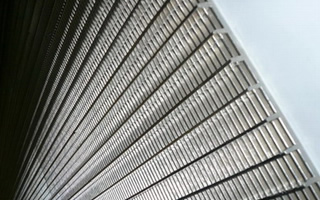

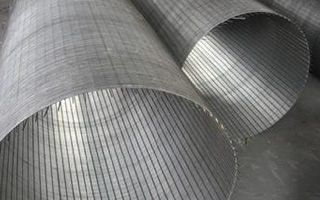

Wedge wire filter element also named wedge wire screen is made of V-shape profile wire and longitudinal support rods

Wedge wire filter element also named wedge wire screen is made of V-shape profile wire and longitudinal support rods. Each intersecting point of these wires is fusion welded which makes it has sturdy construction and good mechanical property. The profile wire and support rod can be axial wire or radial wire. It mainly includes internal filtration, external direction filtration. According to the different usage, we can design the flow direction and shape to meet the application requirements. What’s more, we can customized the wedge wire filter element such as filter tube, filter basket based on the clients requirements.

Specification:
Material: low carbon galvanized wire, mild steel wire, stainless steel wire (SS302, SS304, SS304L, SS316, SS316L, etc.)
Wedge wire
Width: 1.50mm, 1.80mm, 2.30mm, 3.00mm, 3.70mm, 3.30mm.
Height: 2.20mm, 2.50mm, 2.70mm, 3.60mm, 4.30mm 4.70mm, 5.60mm, 6.30mm, 7.00mm.
Support wire:
Support rod:
Width: 2.30mm, 3.00mm, 3.30mm, 3.70mm.
Height: 2.70, 3.60, 4.70, 5.60, 6.30.
Round wire: 2.50 - 5.0mm.
Slot opening: 0.05mm, 0.08mm, 0.10mm, 0.15mm, 0.2mm, 0.3mm, 0.6mm, etc.
Round wire diameter: 2.50 - 5.0mm.
Diameter: 20 - 1000mm.
Length: up to 6 meters.
Filter type: from outside to inside or inside to outside.
End Connection: welded rings (plain beveled ends for butt welding) or threaded male and female coupling (spiral).
Packing: in wooden cases, boxes lined with waterproof material.

Feature:
Low-carbon, galvanized or stainless steel construction.
More open area and high precise openings.
Maximum design flexibility.
More stronger and durable.
High mechanical strength.
Resist pressure, high temperature, aging, corrosion.
Easier installation and long-term operating.
Low operation cost and maintenance cost.
Easy to clean for reuse.

Application: Wedge wire filter element is widely used for deep well pump, dive water pump. Also used for waste water treatment, water softening treatment, oil industry, food process, mineral process, and chemical and alkali filtration.
