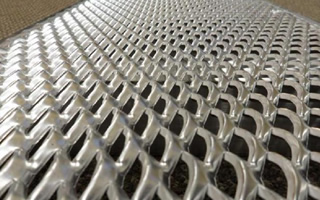

Aluminium Expanded Mesh

Aluminium Expanded Mesh-Aluminum Grade: 1060, 3003, 5052, etc.

Materials: Aluminum Plates.

Plate Thickness: 0.3mm-5.0mm

Grade: 1060, 3003, 5005 or 5052, etc.

Surface Treatment: PVC-coated, Anodizing or PVDF coated. .

Hole Patterns: Diamond, square, round, triangle, scale hole.

Glossary

SWD (Short Way of Diamond) is the distance from the middle of the bond on one side to the middle of the bond
on the opposite side.
LWD (Long Way of Diamond) is the distance across the largest dimension of the diamond measured halfway
between the diamonds.
SWO (Short Way of Opening) is the width of the opening of the shortest side of the diamond. SWO does not include
the strand width, where SWD (Short Way of Diamond) does.
LWO (Long Way of Opening) is the length of the opening of the longest side of the diamond. LWO does not include
the strand width, where LWD (Long Way of Diamond) does.
Strand and Bond: Expanded metal is composed of strands and bonds. Strands form the sides of the expanded metal
openings. Bonds are where the strands intersect. In other words, the bond is where each diamond shaped opening is
connected with the next opening.
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.

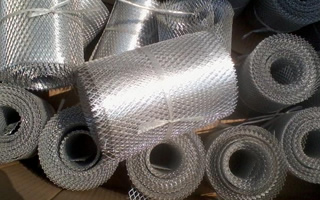

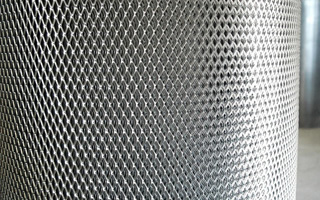

Expanded metal Roll: That the specific length and width of the wound into the roll of steel mesh.

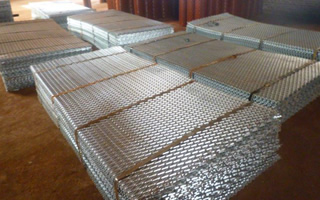

Expanded metal sheet: The expanded metal that show specific length and width.
