Grassland Fence

High Tensile Hinged Joint Fence/Field Fence/Farm Fence/Goat Fence/Sheep Fence/Cattle Fence/Grassland Fence from Tec-Sieve

Grassland Fence is also called Knotted Wire Mesh Fence.

Knotted Wire Mesh Fences are made of hot-dip galvanized steel or iron wire, they can offer high strength and tensile strength, provide safety fencing against fierce striking of cattle, horse or goats.

Knotted Wire Mesh Fences make an ideal fencing material for grasslands husbandry.

Grassland fence is divided into two types: Hinge-joint knot field fence and Fixed knot field fence

Now we will focus on our hinge-joint knot field fence as below:

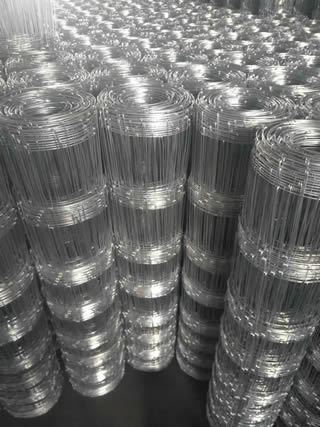

Hinge-Joint Knot Field Fence from 1050mm to 2400mm

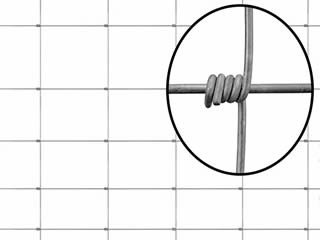

Hinge-Joint Field Fence, always called farm fence, has four wrap hinge joint, in which two vertical stay wires wrap together to form hinged joint. This knot acts as a hinge that gives under pressure, then springs back into shape. This provides easy installation because the hinge "gives" while retaining full height for continuing protection and good looks. Vertical wires are individually cut and wrapped for maximum strength and flexibility.

Different height options for different animals.
Different horizontal wire spacing for different growth period.
Different vertical wire spacing for different tensile strength.
Special discount for large orders and projects.

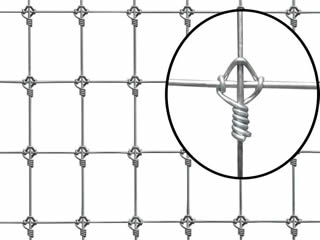

Fixed knot fencing is also available.
Suitable for chicken, rabbit, cat, horse, sheep, deer and even camel.

Dimensions

Materials: Hot-dip galvanized low carbon or high carbon steel wire, both high tensile wire.

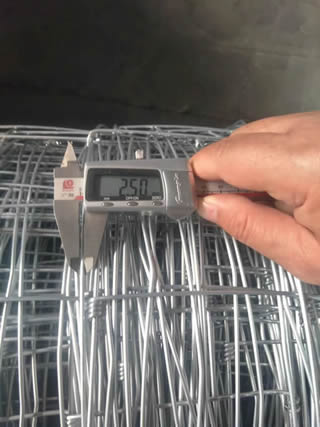

Line wire diameter: 1.6/2.0/2.5/3.0 mm
Top and bottom wire diameter: 2.0/2.5/3.0/3.7 mm
Fence height: 1.05 m to 2.4 m.

Specification Tables

Specification Table 1: Combination of Wire Diameters and Tensile Strengths of Hinge-Joint Knot Field Fence

Wire Designation	Light Duty Fence		Middle Duty Fence		Heavy Duty Fence		Extra Heavy Duty Fence
Wire Designation	Wire Diameter (mm)	Minimum Tensile Strength (N/mm2)	Wire Diameter (mm)	Minimum Tensile Strength (N/mm2)	Wire Diameter (mm)	Minimum Tensile Strength (N/mm2)	Wire Diameter (mm)	Minimum Tensile Strength (N/mm2)
Top and Bottom Wires (Edge Wires)	2.0	650	2.5	650	3.0	650	3.7	650
Line Wires	1.6	450	2.0	450	2.5	450	3.0	450

Specification Table 2: Commonly Used Technical Parameters of Hinge-Joint Knot Field Fence

Type of Hinge-Joint Knot Field Fence	Fence Height (mm)	Number of Horizontal Wires (Warp Wires)	Distance Between Vertical Wires (Weft Wires) (mm)	Number of Mesh Openings & Height of Mesh Opening(mm) in the Vertical Direction	Roll Length (m)
TS-HJKFF1050/13/150	1050	13	150	6 & 75mm + 6 & 100mm	50m, 100m or 150m
TS-HJKFF1250/15/150	1250	15	150	6 & 75mm + 8 & 100mm
TS-HJKFF1550/18/150	1550	18	150	6 & 75mm + 11 & 100mm
TS-HJKFF1550/15/150	1550	15	150	11 & 100mm + 3 & 150mm
TS-HJKFF1850/20/150	1850	20	150	6 & 75mm + 11 & 100mm + 2 & 150mm
TS-HJKFF1850/16/150	1850	16	150	10 & 100mm + 3 & 150mm + 2 & 200mm
TS-HJKFF1950/17/150	1950	17	150	11 & 100mm + 3 & 150mm + 2 & 200mm
TS-HJKFF2000/21/150	2000	21	150	6 & 75mm + 11 & 100mm + 3 & 150mm
TS-HJKFF2400/23/150	2400	23	150	6 & 75mm + 11 & 100mm + 3 & 150mm + 2 & 200mm

Our Advantages

Easy installation and fixation.
HDG material for longevity and excellent corrosion and rust resistance.
High utility value. Wide range of applications (animals fields, farmland, lawns and gardens).

Applications

Hinged mesh, cheap and durable, is used in fencing pastures, fields, forests and other large areas.

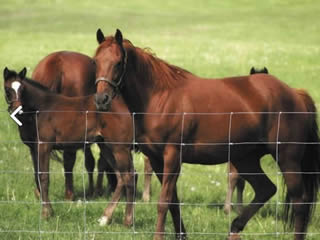

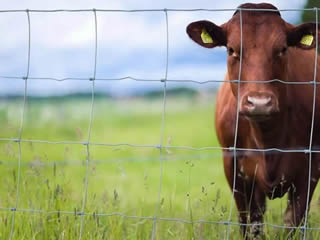

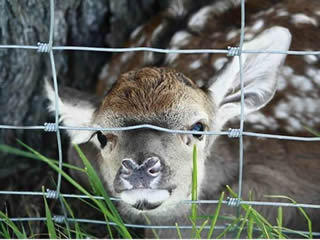

Hinge joint fencing is the best choice of ranchers for protecting their jumping animals like deer, horses and cow, sheep and goat.

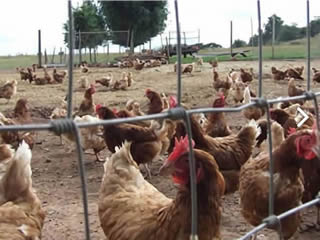

At the bottom of the fence, height mesh height of 5 cm fencing is also recommended for various types of poultry, such as chicken, rabbits, and keeps your farm fields, roads, forests and gardens from the incursions of rabbits and foxes. This hinge joint knot type field fencing is economical knot fence.
